HTTP vs HTTPS Explained

Companion write-up: ByteByteGo — How does HTTPS work? (Episode 6) · Guide — How does HTTPS work?

Overview

HTTP and HTTPS are the same protocol with a different transport guarantee. HTTPS is HTTP carried inside a TLS session: same methods (GET, POST, …), same status codes, same headers — but every byte is encrypted, integrity-protected, and the server has proven its identity with a certificate.

That buys exactly three things, and it is worth naming all three because interviewers listen for them:

Property Without TLS With TLS (HTTPS)
Confidentiality Anyone on the path (Wi-Fi, ISP, proxy) reads the request and response in plain text — ByteByteGo's diagram labels this "no encryption, anyone can intercept" Only the two endpoints can read the payload
Integrity A middlebox can silently alter the body or headers Modification is detected and the connection is torn down
Authentication The client has no proof it is talking to the real server (DNS spoofing, rogue Wi-Fi portal, ARP poisoning) The server proves it holds a private key for a certificate signed by a trusted CA

[!NOTE] Because HTTPS authenticates the server, it is the reason phishing still works: the padlock proves you reached login-bank.com securely — not that login-bank.com is who you think it is. The padlock is about the channel, not the counterparty.

The Handshake Diagram

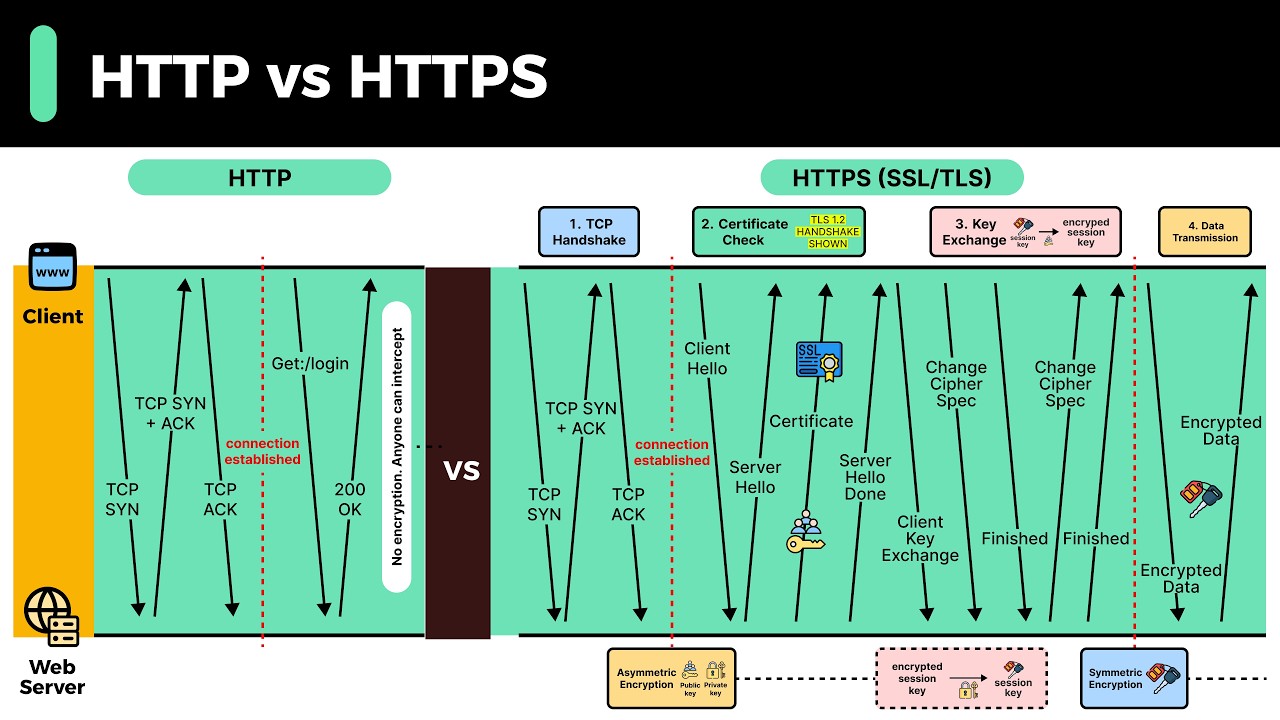

ByteByteGo — HTTP vs HTTPS sequence diagram (TCP handshake, certificate check, key exchange, data transmission)

Diagram © ByteByteGo, reproduced from the companion article for personal study. Click to open at full resolution. The handshake shown is TLS 1.2; TLS 1.3 collapses it (see below).

The diagram puts HTTP and HTTPS side by side across four phases. HTTP stops after phase 1:

Phase Steps on the wire What it accomplishes
1. TCP handshake TCP SYN → TCP SYN + ACK → TCP ACK; connection established A reliable, ordered byte stream exists
2. Certificate check Client Hello → Server Hello → Certificate → Server Hello Done Cipher suite agreed, server identity verified
3. Key exchange Client Key Exchange → Change Cipher Spec → Finished (both directions) Both sides derive the same symmetric session key
4. Data transmission GET /login → 200 OK, now encrypted Application data flows inside the tunnel

Phase 1 — TCP Handshake (HTTP and HTTPS Both Do This)

SYN → SYN+ACK → ACK is the standard three-way handshake. It costs one round trip and establishes sequence numbers and a reliable stream before anything else happens. HTTP/1.1 and HTTP/2 over TCP pay it on every new connection; HTTP/3 (QUIC over UDP) folds the transport and TLS handshakes together instead.

An HTTP conversation adds nothing on top: the client sends GET /login and the server answers 200 OK in cleartext. Anyone with a vantage point on the path — shared Wi-Fi, a malicious exit node, an ISP with a logging box — can read both.

Phase 2 — Certificate Check (The TLS Handshake, Round 1)

Client Hello — the client proposes: - the TLS versions it supports (e.g. 1.3, 1.2); - an ordered list of cipher suites (e.g. TLS_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256); - a random nonce; - SNI — the hostname it wants, so one IP can serve many certificates; - in TLS 1.3, its key share is sent here, which is what removes a round trip.

Server Hello — the server picks one TLS version and one cipher suite from the client's list, and returns its own nonce.

Certificate — the server sends its X.509 chain. The client validates it before anything else happens:

  1. Chain of trust — leaf certificate → intermediate(s) → a root already in the OS/browser trust store, each signature verified.
  2. Hostname — Subject Alternative Name must match the host being contacted.
  3. Validity window — notBefore / notAfter.
  4. Revocation — CRL or OCSP (in practice, OCSP stapling, where the server attaches a signed freshness proof so the client does not have to call the CA).
  5. Key usage / EKU and, increasingly, Certificate Transparency SCTs.

Any failure produces the browser's full-page warning. Server Hello Done closes this round.

[!TIP] This is the step that makes HTTPS resistant to the classic attack: without a valid certificate, an attacker who hijacks the traffic cannot impersonate the server, because it cannot produce a chain that terminates in a trusted root.

Phase 3 — Key Exchange (Where Asymmetric Crypto Is Used, Once)

The client generates the pre-master secret (or, with ECDHE, ephemeral key shares), encrypts it with the server's public key, and sends it as Client Key Exchange. The server decrypts it with the private key — the only party that can. Both sides then derive the same session key, and Change Cipher Spec + Finished in both directions confirm that everything since the handshake is encrypted and unmodified.

This is why the diagram illustrates the session key as encrypted with a public key, decrypted with the private key: asymmetric cryptography is used only to bootstrap a shared secret, never for the payload.

Why HTTPS Switches to Symmetric Encryption for the Data

ByteByteGo gives the two reasons worth memorising:

  1. Security. Public/private key encryption in the naive form is one-directional: if the server encrypts data with its private key, anyone holding the public key can decrypt it. Symmetric keys are known only to the two parties.
  2. Server resources. Asymmetric operations (modular exponentiation, elliptic-curve point multiplication) are orders of magnitude more expensive than AES. Delivering megabytes with them would melt the server.

AES-GCM runs at multiple GB/s per core on any CPU with AES-NI, which is why "HTTPS adds CPU cost" is mostly inaccurate today: the cost is the extra round trip, not the encryption.

Phase 4 — Data Transmission

With the session key in place, GET/response pairs, headers, cookies and bodies are all sent inside the tunnel, authenticated with a MAC or AEAD tag so tampering is detected. From the application's point of view this is ordinary HTTP.

HTTP vs HTTPS at a Glance

Aspect HTTP HTTPS
Default port 80 443
Payload Cleartext Encrypted (TLS)
Integrity protection None AEAD / MAC
Server authentication None X.509 certificate + CA chain
Setup cost 1 RTT (TCP) TLS 1.2: TCP + 2 RTT; TLS 1.3: TCP + 1 RTT; 0-RTT on resumption
Browser treatment "Not secure" warning; features gated (camera, geolocation, service workers, most APIs) Required for modern web APIs
SEO / referrals Penalised Preferred; referrer sent cross-site
Typical deployment Legacy internal services Everything user-facing (Let's Encrypt made certificates free)

What TLS 1.3 Changed

The diagram shows a TLS 1.2 handshake, which is still what most diagrams show. TLS 1.3 (RFC 8446) simplifies it:

  • One round trip instead of two — the client guesses the key-exchange group and sends its key share in Client Hello.
  • Handshake encryption after Server Hello — the certificate is no longer visible to passive observers.
  • RSA key transport removed — forward secrecy is mandatory (ECDHE only). Stealing the server's private key later does not decrypt past sessions.
  • Legacy algorithms dropped — no CBC-mode ciphers, no RC4, no SHA-1, no renegotiation; a shorter, safer cipher list (AEAD only).
  • 0-RTT / early data on resumption — the client can send data in the first flight using a pre-shared key, at the cost of replay risk, so it must only be used for idempotent requests or with anti-replay protections.
  • Encrypted Client Hello (ECH) extends SNI privacy, though deployment is still uneven.

Observing It Yourself

# Which protocol version and cipher does a server actually negotiate?
openssl s_client -connect example.com:443 -servername example.com -tls1_3 </dev/null 2>/dev/null \
  | grep -E "Protocol|Cipher|Server public key"

# What does curl see (certificate subject/issuer, ALPN = h2/h3)?
curl -vI https://example.com 2>&1 | grep -E "SSL connection|subject:|issuer:|ALPN"

# Certificate dates — the cheapest TLS expiry check in existence
echo | openssl s_client -connect example.com:443 -servername example.com 2>/dev/null \
  | openssl x509 -noout -subject -issuer -dates

# Where the handshake actually happens: capture and read it in Wireshark
# filter: tls.handshake.type == 1   (Client Hello)
sudo tcpdump -i any -n port 443 -w /tmp/tls.pcap

In the browser, DevTools → Security shows the protocol version, cipher suite and certificate chain for the current page; DevTools → Network → Protocol column shows h2/h3 when HTTP/2 or HTTP/3 is in use.

Interview Angle: The Questions That Follow

  • "Why not use asymmetric encryption for everything?" Cost — both the CPU overhead and the one-directional problem ByteByteGo calls out. Symmetric + key exchange is the hybrid answer.
  • "How does the client know the public key is genuine?" It does not inherently — that is what the CA chain and certificate validation are for. Without a trusted root the whole thing collapses (hence certificate pinning in mobile apps, and hence "install our root certificate" being the classic corporate-MITM move).
  • "What is forward secrecy?" Ephemeral ECDHE keys per session: a later private-key compromise cannot retroactively decrypt recorded traffic. TLS 1.3 makes it non-optional.
  • "Does HTTPS slow things down?" One extra RTT on a full handshake, ~zero for the symmetric payload on modern CPUs; session resumption and 1.3/0-RTT reduce or eliminate the handshake on repeat visits. The latency cost of HTTP/3 is mostly about avoiding TCP head-of-line blocking.
  • "What about HTTP/2 and HTTP/3?" Both effectively require TLS in browsers (ALPN negotiates h2/h3), so "HTTPS" is a prerequisite, not an alternative.
  • "How do you migrate a site to HTTPS safely?" Redirect 80 → 443 with 301, then HSTS (max-age, includeSubDomains, eventually preload); serve every asset over HTTPS to avoid mixed content; point ACME/Let's Encrypt renewal at the site and monitor expiry.

Hardening Checklist

# Minimal nginx TLS config: modern protocols, HSTS, redirect from plaintext
server {
    listen 80;
    server_name example.com;
    return 301 https://$host$request_uri;          # permanent redirect to HTTPS
}

server {
    listen 443 ssl;
    http2 on;
    server_name example.com;

    ssl_certificate     /etc/letsencrypt/live/example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/example.com/privkey.pem;

    ssl_protocols       TLSv1.2 TLSv1.3;           # TLS 1.0/1.1 are deprecated
    ssl_prefer_server_ciphers off;                 # let the client pick (1.3 style)
    ssl_session_cache   shared:SSL:10m;            # resume instead of re-handshaking
    ssl_session_timeout 1d;
    ssl_stapling on;                               # OCSP stapling
    ssl_stapling_verify on;

    add_header Strict-Transport-Security "max-age=31536000; includeSubDomains" always;
}
  • Keep certificates renewed automatically (certbot renew, systemd timer) and alert on expiry — an expired certificate is a hard outage, not a warning.
  • Mark cookies Secure; HttpOnly; SameSite=....
  • Terminate TLS in one place (load balancer/ingress) and re-encrypt or use a trusted network internally; "TLS everywhere, including east-west" is now the common stance.
  • Watch for mixed content after a migration: one http:// image resets the padlock.
